SILICONE PROFILES / PACKINGS (GASKETS)
Properties and manufacture
Silicone profiles are extraordianry flexible
and highly elastic, they have excellent thermal and electric as
well as good chemical and mechanical properties. They are
weatherproof, resistant to ozon, UV light and ageing. They are
relatively well resistant to weak acids, alkalis, salts and
vegetable oils. At the same time they resist funghi and
bacteria.
There are various types of silicone rubber,
with emphasized individual properties. Their operating
temperature is between -60°C and +250°C, with special additives
it can reach even +300°C. Hardness of such profiles according to
Shore A varies between 30 and 70 (with tolerances of + Sh A).
We are specialized in silicone profiles
manufacturing. The profiles are extruded and vulcanized in a
continuous process. Raw material is chosen in a way to fulfil
customer demands concerning the properties of the final product.
Area of application
Profiles are used for tightening of various
media, vibration and noise damping and reducing heat losses in
the industry of domestic appliances, civil engeneering elements,
automotive industry, heating and cooling industry, for
laboratory instruments and in civil engeneering. They are also
indispensable to mantain production equipment, machines and
devices in various industrial branches.
Profile shapes and dimensions
Apart from those presented, we produce profiles
following the customer's demands and orders in various shapes
and colors in accordance with submitted samples and designes.
Profiles are delivered in coils. The dimension tolerances are
corresponding to DIN 7751 Standard Class 2 (medium accuracy).
Profile ordering
When ordering or demanding an inquiery, please
specify or enclose the following: the profile code or design
together with the relevant dimensions or a profile sample, area
of application with the corresponding thermal, chemical and
physical environment, required quantity, hardness and colour.
You probably didn't find proper answer to
your questions so far. Do not hesitate to call us or visit us.
We shell make our best to find suitable solution for you, as
we have been doing for our business partners for more than 20
years.
FOR BIGGER PROFILE PICTURE, CLICK ON THE DESIRED PROFILE

01.01.m |

01.02.m |

0103k |

01.04.k |

01.05.r |

02.01.e |

02.02.d |

02.03.d |

02.04.g |

02.05.g |

03.01.s |

03.02.s |

03.03.s |

03.04.s |

03.05.t |

04.01.p |

04.02.z |

04.03.f |

04.04.s |

04.05.s |

05.01.u |

05.02.u |

05.03.u |

05.04.u |

05.05.b |

06.01.v |

06.02.v |

06.03.c |

06.04.d |

06.05.c |

07.01.l |

07.02.s |

07.03.o |

07.04.p |

07.05.c |

08.01.k |

08.02.t |

08.03.o |

08.04.o |

08.05.u |

09.01.h |

09.02.p |

09.03.m |

09.04.o |

09.05.u |

10.01.f |

10.02.d |

10.03.s |

10.04.s |

10.05.u |

11.01.l |

11.02.s |

11.03.d |

11.04.o |

11.05.o |

12.01.o |

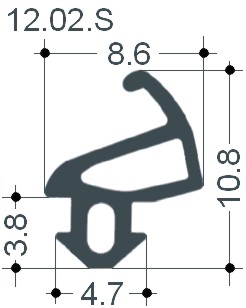

12.02.s |

12.03.s |

12.04.g |

12.05.u |

13.01.l |

13.02.m |

13.03.u |

13.04.s |

13.05.b |

14.01.g |

14.02.s |

14.03.k |

14.04.r |

14.05.u |

15.01.k |

15.02.t |

15.03.l |

15.04.l |

15.05.b |

16.01.b |

16.02.k |

16.03.u |

16.04.o |

16.05.s |

17.01.s |

17.02.e |

17.03.o |

17.04.k |

17.05.p |

18.01.s |

18.02.s |

18.03.j |

18.04.a |

18.05.s |

19.01.u |

19.02.u |

19.03.d |

19.04.s |

19.05.t |

20.01.u |

20.02.u |

20.03.j |

20.04.t |

20.05.e |

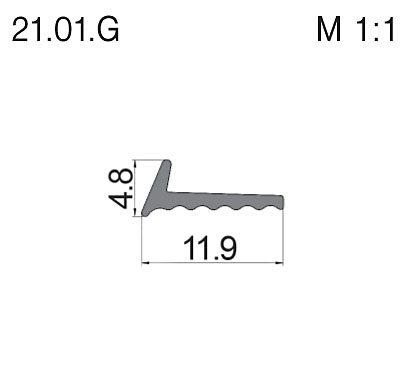

21.01.g |

21.02.u |

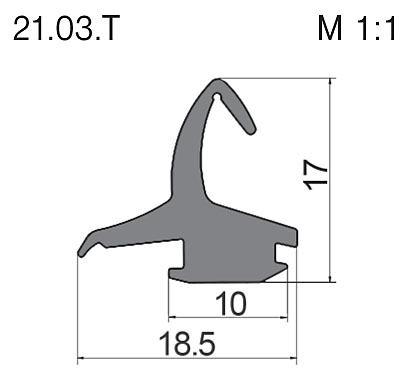

21.03.t |

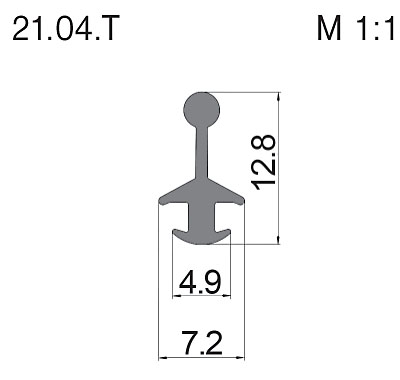

21.04.t |

21.05.O |

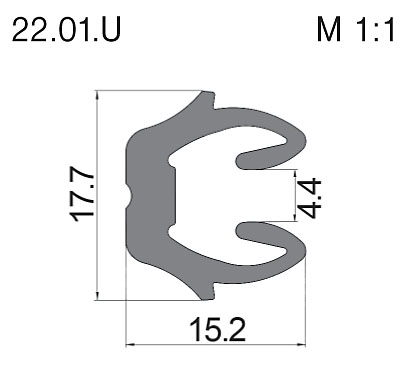

22.01.u |

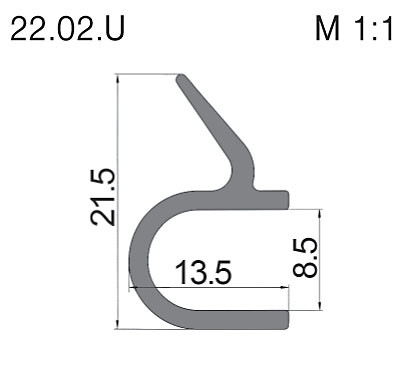

22.02.u |

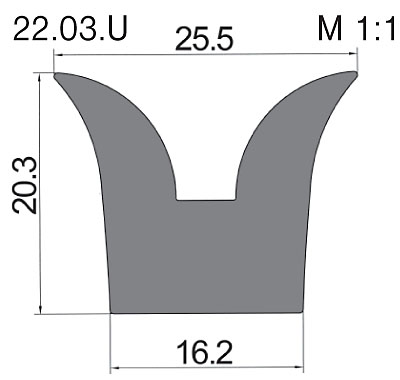

22.03.u |

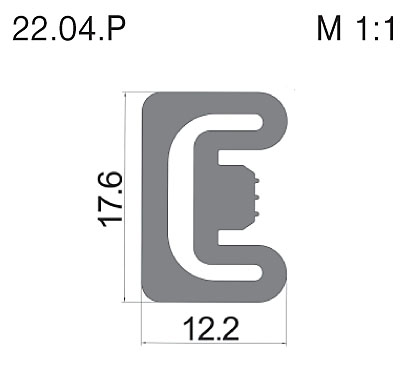

22.04.p |

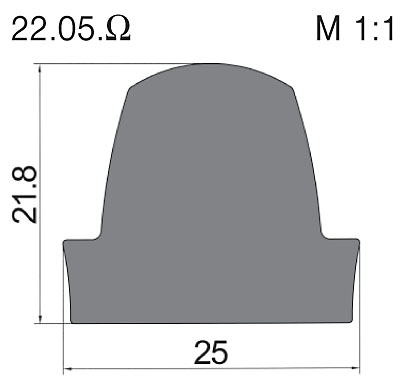

22.05.O |

23.01.O |

23.02.l |

23.03.s |

23.04.d |

23.05.s |

24.01.l |

24.02.s |

24.03.s |

24.04.j |

24.05.v |

25.01.d |

25.02.h |

25.03.t |

25.04.s |

25.05.d |

26.01.d |

26.02.a |

26.03.p |

26.04.k |

26.05.s |

27.01.v |

27.02.a |

27.03.a |

27.04.p |

27.05.g |

28.01.v |

28.02.O |

28.03.g |

28.04.v |

28.05.o |

29.01.d |

29.02.r |

29.03.f |

29.04.u |

29.05.a |

30.01.u |

30.02.d |

30.03.t |

30.04.t |

30.05.s |

31.01.p |

31.02.v |

31.03.s |

31.04.u |

31.05.s |

32.01.o |

32.02.d |

32.03.t |

32.04.s |

32.05.s |

33.01.d |

33.02.s |

33.03.k |

33.04.g |

33.05.s |

34.01.s |

34.02.s |

34.03.t |

34.04.g |

34.05.r |
 35.01.d |
 35.02.v |
 35.03.p |
 35.04.k |
 35.05.f |
 36.01.g |
 36.02.e |
 36.03.o |
 36.04.o |
 36.05.a |
 37.01.u |
 37.02.o |
 37.03.g |
 37.04.s |
 37.05.d |
 38.01.s |
 38.02.u |
 38.03.d |
 38.04.s |
 38.05.s |
 39.01.l |
 39.02.t |
 39.03.e |
 39.04.d |
 39.05.d |
 40.01.d |
 40.02.p |
 40.03.t |
 40.04.e |
 40.05.d |
 41.01.b |
 41.02.s |
 41.03.l |
 41.04.a |
 41.05.s |

42.01.T |

42.02.B |

42.03.P |

42.04.M |

42.05.A |

43.01.U |

43.02.S |

43.03.P |

43.04.L |

43.05.D |

44.01.S |

44.02.D |

44.03.D |

44.04.D |

44.05.D |

45.01.D |

45.02.S |

45.03.A |

45.04.H |

45.05.H |

46.01.S |

46.02.A |

46.03.S |

46.04.K |

46.05.P |

47.01.T |

47.02.C |

47.03.K |

47.04.G |

47.05.U |

48.01.L |

48.02.C |

48.03.S |

48.04.S |

48.05.C |

49.01.S |

49.02.S |

49.03.S |

49.04.S |

49.05.D |

50.01.D |

50.02.U |

50.03.D |

50.04.S |

50.05.S |

51.01.S |

51.02.U |

51.03.H |

51.04.R |

51.05.K |

52.01.O |

52.02.S |

52.03.O |

52.04.A |

52.05.D |

53.01.U |

53.02.O |

53.03.H |

53.04.U |

53.05.A |

54.01.V |

54.02.S |

54.03.D |

54.04.E |

54.05.S |

55.01.P |

55.02.P |

55.03.P |

55.04.S |

55.05.D |
ATTENTION : images are approx. 1:1 only
at 1024x768 graphic monitor resolution
|
